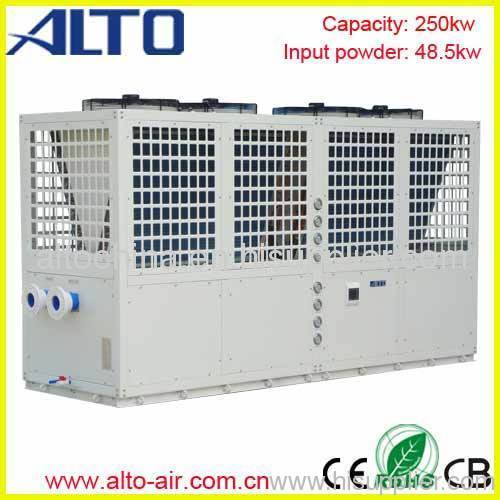

Commercial pool heat pump system(250kw,galvanized steel cabinet) B-850 manufacturer from China Alto Refrigeration Manufacturing Co.,Ltd.

Payment Terms:	L/C
Place of Origin:	Guangdong, China (Mainland)

Product Detail

Model No.: B-850

Packing: Cartons & Wooden case

Installation: Wall Mounted

Certification: CE

Extrinsic feature: Galvanized steel

Evaporator: Bluetec coated evaporator

Multi electric protection: Surge protection discharge,...

Production Capacity: 3000

Delivery Date: 15 to 30 days

Type: Tankless

Use: Swimming Pool

Model: AS-H850Y

Heat exchanger: Titanium heat exchanger

1.Heat pump COP: 4.7 ~ 5.1
2.Galvanized steel cabient.
3.Auto & economic operation mode.
4.Auto-restart & auto-defrosting.

ALTO commercial pool heat pump system is a new productfor heating your swimming pools.

Alto commercial pool heatpump system features:

Highefficient compressor, extra large evaporator ,and reliableEmersion expansion valve, contribute a Super-Power refrigeration system with theCOP up to 4.9. The pool heat pump equipped with R410a can operate above -5°C andheat the pool water up to 45°C .
Puretitanium heat exchanger ensures complete corrosion resistance,which enable Alto pool heat pump to be compatible with all types of watertreatment, including chlorinate, ozone, iodine, bromine and salt water.
The automated control owns thesimple and friendly interface. Set the desired pool water temperature and theheat pump will do the rest. Both panel control and line control(optional) areavailable.
Reversible design incorporates the auto-defrosting function, whicheliminates the frost on the evaporator in cold temperature conditions. And italso combines both water heating and water cooling functions together.
Multiprotection devices have been built inside for ease of operationand increasing the durability, including the water flow switch, high/lowpressure protection, overload protection and compressor protection.
Multielectric protection:Surge protection discharge, Phase sequenceprotection, Loss phase protection
Abundantoptional parts are offered to satisfy customers requirement,including electric heater, soft start, crank heater, chassis base anti-icingdevice, by pass and winter cover etc.

POOL HEAT PUMP SPECIFICATIONS AS-H850Y
Design	Reverse Cycle Heat and Cool
ELECTRICAL INPUT
Voltage/phase	380~415Volts /3 /50Hz
Amps Per Phase	81.9 Amps
Min. Circuit Size	150Amps
PERFORMANCE
	WINTER(heating)	SUMMER(cooling)
Air on conditions	15 °CDB, 12°CWB	24 °CDB, 19°CWB
Entering water temp	27°C	27°C
Normal capacity	249kW	230.0kW
Power input	48.5kW	46.8kW
COP (Calculated)	5.13	4.91
Noise level	72d(B)A at 5m	72d(B)A at 5m
Approx.shipping weight	1580kg
Size LWH	1120mm4250mm2050mm
